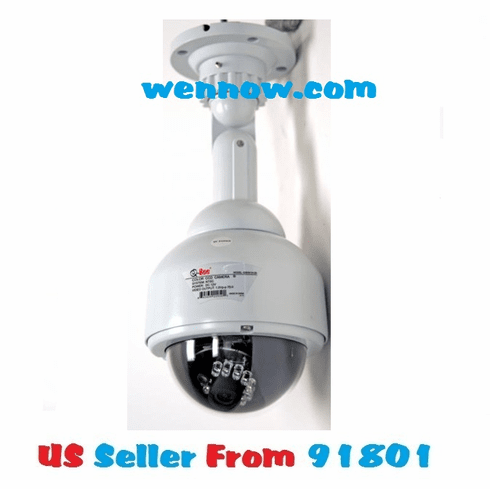

QSDS1312D Outdoor CCD Dome Camera 480TVL 3.6mm Lens

QSDS1312D Outdoor CCD Dome Camera 480TVL 3.6mm Lens

Item# 77131248036
Regular price:
Sale price:
Availability: not set

Outdoor CCD dome security camera is a popular choice for outdoor home and business security camera systems. This camera provides color high resolution video during the daytime, can see up to 25ft with 12 IR LEDs for black and white night vision, and is perfect for the home and business use. The camera is equipped with a wide angle lens of 3.6mm for perfect color picture quality. Easy to install and operate. Product Features 1/3" Sony CCD Image Sensor DSP: SONY 480 TV Lines Resolution 3.6mm Fixed Lens 25 ft Night Vision 12 IR LEDs Waterproof Level: IP66 Operating Temperature: -14F to +122F DC12V 300mA 3 Axle Mounting bracket(Included)

Product Specifications Category Description Image Sensor COLOR 1/3" SONY CCD Effective Pixels NTSC:811(H)508(V) PAL:795(H)596(H) Horizontal Resolution 480TVL Sync System Internal Scanning system Interlace 2:1 Electronic Shutter NTSC: 1/60s~1/100000s White Balance ON/OFF Gamma 0.45 S/N Ratio 50dB Video Output 1.0Vp-p 75 BNC Usable Illumination 0Lux(When IR LEDs on) waterproof level IP66 IR LEDs Wavelength 850nM IR LEDs Distance About 7m (25ft) IR LEDs Amount 5 LED 12pcs IR LEDs Auto ON/OFF Day/Night AGC On/Off BLC On/Off Lens Fixed 3.6mm Field of View 33 Power Supply DC12V 300mA Power Consumption 3W(When IR LEDs on) Operating Temp -10C to 50C (14F to 122F) RH 95% Max Package Weight 25.9 oz (734g)

Product Contents Qty Description 1 QSDS1312D Camera 1 Mounting Bracket 1 Users Guide

***Adapter and Cable not included***
